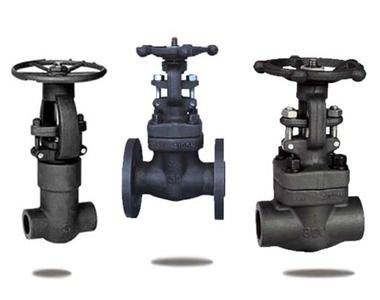

进口闸阀

一、进口闸阀概述
品牌：美国欧可OKE
进口闸阀，American Standard cast steel gate valve，也叫美标API闸阀，美标ANSI闸阀，美标磅级闸阀，是指采用铸钢的阀体材质，制造和设计标准采用API或者ANSI的美国标准的闸阀，适用于ANSI Class 150~2500，工作温度＜600℃的石油、化工、火力电站等各种工况的管路上，切断或接通管路介质。适用介质为：水、油品、气体用等。

二、进口美标闸阀参数
1、公称压力或压力级： ANSI CLASS 150-1500LB、JIS10-20K
2、公称通径或口径：DN25～1000、NPS 1/2 ～36"
3、连接方式：法兰
4、适用温度：-196℃～700℃
5、驱动方式：手动、伞齿轮传动、气动、电动、液动、气液联动、电液联动
6、阀体材料：WCB、SS304\SS316或者其它特殊材质
7、适用介质：水、蒸汽、油品、硝酸、醋酸、氧化性介质、尿素等多种介质。

三、进口美标闸阀产品特点：
①美标闸阀产品设计制造符合美国国家标准ANSIB16.34，美国石油学会标准AP16D和API600要求。
②美标闸阀结构紧凑、体积小、刚性好、密封安全可靠。
③美标闸阀关闭件（闸板）采用弹性结构，在工作中能自动补偿由于异常负荷或温度引起的阀体变形。因此，密封可靠，并且不会产生闸板楔柱。
④美标闸阀公称通径大于等于NPS1011，压力级400磅级和公称通径大于等于NPSS611、压力级600～2500磅级的手动阀门，其操做装置中配有滚动轴承，启闭轻松。
⑤美标闸阀主体材料、内件材料、填料、垫片、紧固件的材料可根据用户要求或实际工况条件合理组合。
⑥美标闸阀阀座可为更掀式阀座，可任意组合与关闭密封面材质配对，以满足工况要求，延长使用寿命。

四、进口美标闸阀标准：
设计与制造 结构长度 法兰尺寸 对焊连接尺寸 压力温度等级 试验与检验
AP1 600 ANS1B16.10 ANS1B16.5a ANS1B16.25 ANS1B16.34 AP1598

五、进口美标铸钢闸阀压力试验：
公称压力 强度试验 水密封试验 气密封试验
 MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
150 3.1 450 2.2 315 0.5～0.7 60～100
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630
900 23.1 3350 16.8 2440
1500 38.4 5575 28.1 4080
2500 64.6 9367 47.4 6873

Import gate valve

I. Overview of the imported gate valve
Brand: US Ouke OKE
Imported gate valve, American Standard cast steel gate valve, also known as American standard API gate valve, American standard ANSI gate valve, American standard pound gate valve, refers to the use of cast steel valve body material, manufacturing and design standards using API or ANSI American standard The gate valve is suitable for cutting and connecting the pipeline medium in the pipelines of various working conditions such as ANSI Class 150~2500 and working temperature <600 °C for petroleum, chemical and thermal power stations. Applicable medium: water, oil, gas, etc.

Second, the import of American standard gate valve parameters
1. Nominal pressure or pressure level: ANSI CLASS 150-1500LB, JIS10-20K
2, nominal diameter or caliber: DN25 ~ 1000, NPS 1/2 ~ 36"
3, connection method: flange
4, applicable temperature: -196 ° C ~ 700 ° C
5. Drive mode: manual, bevel gear transmission, pneumatic, electric, hydraulic, gas-liquid linkage, electro-hydraulic linkage
6, valve body material: WCB, SS304\SS316 or other special materials
7. Applicable medium: water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.

Third, the import American standard gate valve product features:
1 American standard gate valve products are designed and manufactured in accordance with American National Standard ANSI B16.34, American Petroleum Institute standards AP16D and API600 requirements.
2 American standard gate valve is compact in structure, small in size, good in rigidity and safe and reliable in sealing.
3 American standard gate valve closing member (throttle plate) adopts elastic structure, which can automatically compensate the deformation of the valve body due to abnormal load or temperature during operation. Therefore, the seal is reliable and does not create a gate wedge.
4 American standard gate valve nominal diameter is greater than or equal to NPS1011, pressure class 400 pounds and nominal diameter is greater than or equal to NPSS611, pressure level 600 ~ 2500 pounds of manual valves, the operating device is equipped with rolling bearings, easy to open and close.
5 American standard gate valve body materials, internal materials, fillers, gaskets, fasteners materials can be reasonably combined according to user requirements or actual working conditions.
6 American standard gate valve seat can be a more sturdy valve seat, which can be matched with the material of the closed sealing surface to meet the working conditions and prolong the service life.

Fourth, the import of American standard gate valve standards:
Design and manufacture Structural length Flange size Butt joint size Pressure temperature grade Test and inspection
AP1 600 ANS1B16.10 ANS1B16.5a ANS1B16.25 ANS1B16.34 AP1598

V. Imported American Standard Cast Steel Gate Valve Pressure Test:
Nominal pressure strength test water seal test gas seal test
MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
150 3.1 450 2.2 315 0.5~0.7 60～100
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630
900 23.1 3350 16.8 2440
1500 38.4 5575 28.1 4080
2500 64.6 9367 47.4 6873
