进口水用高压减压阀

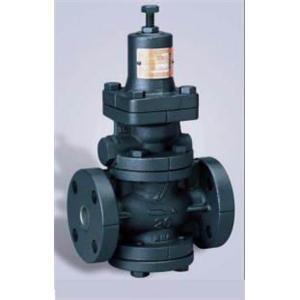

一、进口水用高压减压阀 产品概述
品牌：美国欧可OKE
进口水用高压减压阀，Water high-pressure reducing valve也叫高压调压阀，主要由调节弹簧、膜片、活塞、阀座、阀瓣等零件组成，利用膜片直接传感下游压力驱动阀瓣，控制阀瓣开度完成减压稳压功能的阀门。最高阀前压力32Mpa，出口减到0.1Mpa，适用于高压或者高压差的水流介质场合，将进口的高压力减到并稳定在需要的压力值。
美国欧可OKE进口水用高压减压阀主要应用在煤矿井下高压，城市高层建筑、酒店等冷热供水系统中，可取代常规分区水管，节省设备。也可在通常的冷热水管网中，起减压稳压作用。
主要特征：
◆结构新颖合理、高压减压稳定
◆工作平稳可靠、大流量通行
◆阀瓣快开慢闭、高压差时无水锤冲击(关闭时间可调)
◆减稳压精度高、调节范围大
◆密封性能好、使用寿命时间长
二、进口水用高压减压阀 技术参数及性能
公称压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
壳体试验压力(Mpa)* 2.4 3.75 6.0 9.6 15.0 24
密封试验压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
最高进口压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
出口压力范围(Mpa) 0.04-1.0 0.05-1.6 0.08-2.5 0.2-3.5 0.5-3.5 0.5-4.5
最小压差(Mpa) 0.07 0.1 0.15 0.4 0.5 0.8
渗漏量 ANSI560359
三、进口水用高压减压阀 额定流量系数
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500
四、进口水用高压减压阀 零件材料
零件名称 零件材料
阀体 阀盖 底盖 WCB
阀座 2Cr13
阀瓣 2Cr13
阀杆 2Cr13
缸套 2Cr13/25(镀硬铬)
活塞 2Cr13
O型圈 丁腈橡胶
密封圈 丁腈橡胶
膜片 夹织物丁腈橡胶
调节弹簧 60Si2Mn
五、进口水用高压减压阀 部分业绩
三亚文华东方酒店、香格里拉台南远东国际大饭店、波士顿文华东方酒店、布拉格凯宾斯基、迪拜塔、台北101大厦、上海环球金融中心、香港环球贸易广场蒙特里凯悦度假村、曼谷香格里拉大酒店、波尔托罗曰凯宾斯基酒店、巴黎玛德莱娜凯悦酒店、布达佩斯卡尔维努斯凯宾斯基酒店
六、进口水用高压减压阀安装说明：
1、安装高压气体减压阀之前必须对管路系统进地冲洗清理，以防焊渣、氧化皮等脏物流入阀内，影响阀门正常工作。
2、高压气体减压阀应安装在便于操作和维修的地方，并且必须直立安装在水平管路上（见安装示意图）应注意使管路中介质的流向与阀体上箭头所示方向一致，切勿装反
3、高压气体减压阀在安装使用时，应先把旁通管路上的截止阀打开，排除管路中的冷凝水和汽水混合物，以防减压阀开启时产生水击现象损坏减压阀，当无异常现象后，按顺时针方向缓慢旋转调节螺钉，将出口压力调至所需要的压力（以阀后表压为准），调整好后，将锁紧螺母锁紧，拧上防护罩。
4、减压阀前应安装过滤器，以防止介质中的杂质进入减压阀，影响其性能。
5、安装的减压阀前后应有一段直管，阀前直管长度约为600毫米，阀后直管长度约为1000毫米。
本公司产品可以按客户规格\型号\压力\温度\材质定制
High pressure relief valve for imported water
1. High pressure relief valve for imported water Product Overview
Brand: US Ouke OKE
Water high-pressure reducing valve is also called high-pressure pressure regulating valve. It is mainly composed of adjusting spring, diaphragm, piston, valve seat and valve disc. It uses diaphragm to directly sense downstream pressure-driven valve. The valve that controls the valve opening to complete the decompression and pressure regulation function. The maximum valve front pressure is 32Mpa, and the outlet is reduced to 0.1Mpa. It is suitable for high-pressure or high-pressure water flow media applications, reducing the high pressure of the inlet to the required pressure value.
The US Ou Ke OKE imported water high pressure relief valve is mainly used in coal mine high pressure, urban high-rise buildings, hotels and other hot and cold water supply systems, which can replace the conventional partition water pipes and save equipment. It can also be used in the normal hot and cold water pipe network to reduce the pressure.
Main features:
◆The structure is novel and reasonable, high pressure and pressure reduction
◆Stable and reliable work, large traffic
◆The valve flap opens and closes slowly, and the high pressure difference is no impact on the hammer (the closing time is adjustable)
◆High voltage regulation and high adjustment range
◆Good sealing performance and long service life
2. High-pressure pressure reducing valve for imported water Technical parameters and performance
Nominal pressure (Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
Shell test pressure (Mpa)* 2.4 3.75 6.0 9.6 15.0 24
Seal test pressure (Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
Maximum import pressure (Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
Outlet pressure range (Mpa) 0.04-1.0 0.05-1.6 0.08-2.5 0.2-3.5 0.5-3.5 0.5-4.5
Minimum differential pressure (Mpa) 0.07 0.1 0.15 0.4 0.5 0.8
Leakage ANSI560359
Third, the imported water high pressure relief valve rated flow coefficient
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500
4. High-pressure pressure reducing valve for imported water
Part Name Part Material
Body bonnet bottom cover WCB
Seat 2Cr13
Disc 2Cr13
Stem 2Cr13
Cylinder liner 2Cr13/25 (hard chrome plating)
Piston 2Cr13
O-ring nitrile rubber
Sealing ring
Diaphragm clip fabric nitrile rubber
Adjustment spring 60Si2Mn
V. Imported water high pressure relief valve
Mandarin Oriental, Sanya, Shangri-La's Far Eastern Plaza Hotel, Boston, Mandarin Oriental, Boston Kempinski, Burj Khalifa, Taipei 101, Shanghai World Financial Center, Hyatt Regency Hong Kong Global Commerce Plaza, Shangri-La, Bangkok Hotel, Kempinski Hotel Portoro?, Hyatt Regency Paris Madeleine, Kempinski Hotel Calvinus Budapest
6. Installation instructions for imported high pressure relief valve for water:
1. Before installing the high-pressure gas pressure reducing valve, the pipeline system must be flushed and cleaned to prevent the dirt, such as welding slag and oxide scale, from flowing into the valve, which affects the normal operation of the valve.
2. The high pressure gas pressure reducing valve should be installed in a place convenient for operation and maintenance, and must be installed upright on the horizontal pipeline (see installation diagram). Note that the flow direction of the medium in the pipeline is consistent with the direction indicated by the arrow on the valve body. Do not pretend
3. When installing and using the high-pressure gas pressure reducing valve, first open the shut-off valve on the bypass line to eliminate the condensed water and steam-water mixture in the pipeline to prevent water hammer from being damaged when the pressure-reducing valve is opened. When there is no abnormality, slowly rotate the adjusting screw clockwise to adjust the outlet pressure to the required pressure (according to the valve back pressure). After adjusting, lock the lock nut and screw the protective cover. .
4. A filter should be installed before the pressure reducing valve to prevent impurities in the medium from entering the pressure reducing valve and affecting its performance.
5. There should be a straight pipe before and after the installed pressure reducing valve. The length of the straight pipe before the valve is about 600 mm, and the length of the straight pipe behind the valve is about 1000 mm.
The company's products can be customized according to customer specifications\model\pressure\temperature\material
|
