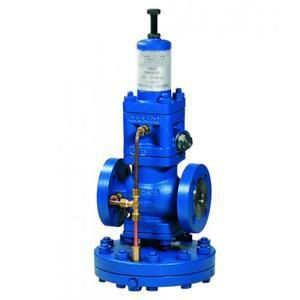

进口膜片式水用减压阀

进口膜片式水用减压阀概述
品牌：美国欧可OKE
进口膜片式水用减压阀，Diaphragm water pressure reducing valve，也叫弹簧膜片式减压阀，属于直接作用式薄膜弹簧减压阀。主要由调节弹簧、膜片、活塞、阀座、阀瓣等零件组成。利用膜片直接传感下游压力驱动阀瓣，控制阀瓣开度完成减压稳压功能。
进口膜片式水用减压阀在城市建筑、高层建筑的冷热供水系统中，可取代常规分区水管，节省设备。也可在通常的冷热水管网中，起减压稳压作用。
本产品调压、稳压动作平稳，适用于水和非腐蚀性液体介质的管路。
一、进口膜片式水用减压阀主要技术参数和性能指标
公称压力(Mpa) 1.0 1.6 2.5
壳体试验压力(Mpa)* 1.5 2.4 3.75
密封试验压力(Mpa) 1.0 1.6 2.5
最高进口压力(Mpa) 1.0 1.6 2.5
出口压力范围(Mpa) 0.2-0.8 0.2-1.0 0.4-1.6
渗漏量 0
工作温度 0℃-80℃
*：壳体试验不包括膜片、阀盖

二、进口膜片式水用减压阀主要零件材料
零件名称 零件材料
阀体 阀盖 底盖 HT250或者WCB
阀座 2Cr13
阀瓣 2Cr13
阀杆 2Cr13
缸套 2Cr13/25(镀硬铬)
活塞 2Cr13
O型圈 丁腈橡胶
密封圈 丁腈橡胶
膜片 夹织物丁腈橡胶
调节弹簧 60Si2Mn

三、进口膜片式水用减压阀 部分业绩
厦门水务局、三亚文华东方酒店、香格里拉台南远东国际大饭店、波士顿文华东方酒店、布拉格凯宾斯基、迪拜塔、上海汉华水处理公称有限公司、台北101大厦、上海环球金融中心、香港环球贸易广场蒙特里凯悦度假村、曼谷香格里拉大酒店、波尔托罗曰凯宾斯基酒店、巴黎玛德莱娜凯悦酒店、大连水务集团、布达佩斯卡尔维努斯凯宾斯基酒店、开能集团、湖南永清投资集团、廊坊多元水处理集团

Imported diaphragm type water pressure reducing valve
Overview of imported diaphragm type water pressure reducing valve
Brand: US Ouke OKE
Diaphragm water pressure reducing valve, also known as spring diaphragm pressure reducing valve, is a direct acting diaphragm spring pressure reducing valve. Mainly composed of adjusting spring, diaphragm, piston, valve seat, valve disc and other parts. The diaphragm directly senses the downstream pressure-driven valve flap, and controls the valve opening to complete the decompression and voltage stabilization function.
The imported diaphragm type water pressure reducing valve can replace the conventional partition water pipe in the urban building and high-rise building hot and cold water supply system, saving equipment. It can also be used in the normal hot and cold water pipe network to reduce the pressure.
This product has stable voltage regulation and stable voltage regulation, and is suitable for pipelines of water and non-corrosive liquid medium.
First, the main technical parameters and performance indicators of imported diaphragm type water pressure reducing valve
Nominal pressure (Mpa) 1.0 1.6 2.5
Shell test pressure (Mpa)* 1.5 2.4 3.75
Sealing test pressure (Mpa) 1.0 1.6 2.5
Maximum import pressure (Mpa) 1.0 1.6 2.5
Export pressure range (Mpa) 0.2-0.8 0.2-1.0 0.4-1.6
Leakage 0
Working temperature 0°C-80°C
*: Shell test does not include diaphragm, bonnet

Second, the imported diaphragm type water pressure reducing valve main parts and materials
Part Name Part Material
Body bonnet bottom cover HT250 or WCB
Seat 2Cr13
Disc 2Cr13
Stem 2Cr13
Cylinder liner 2Cr13/25 (hard chrome plating)
Piston 2Cr13
O-ring nitrile rubber
Sealing ring
Diaphragm clip fabric nitrile rubber
Adjustment spring 60Si2Mn

3. Imported diaphragm type water pressure reducing valve
Xiamen Water Affairs Bureau, Sanya Mandarin Oriental Hotel, Shangri-La's Far Eastern Plaza Hotel, Boston Mandarin Oriental Hotel, Prague Kempinski, Burj Khalifa, Shanghai Hanhua Water Treatment Co., Ltd., Taipei 101 Building, Shanghai World Financial Center, Hyatt Regency Hong Kong at Universal Plaza, Hong Kong, Shangri-La Hotel, Bangkok, Kempinski Hotel Portoro?, Hyatt Regency Paris Madeleine, Dalian Water Group, Kempinski Hotel Karvinus Budapest Kai Neng Group, Hunan Yongqing Investment Group, Langfang Multi-Water Treatment Group
