进口水用可调式减压阀
一、进口水用可调式减压阀 产品概述
品牌：美国欧可OKE

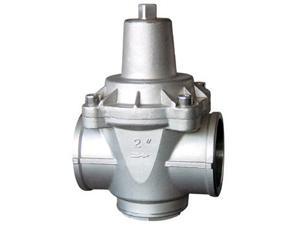

进口水用可调式减压阀，Water adjustable pressure reducing valve也叫水用调压阀，主要由调节弹簧、膜片、活塞、阀座、阀瓣等零件组成，利用膜片直接传感下游压力驱动阀瓣，控制阀瓣开度完成减压稳压功能的阀门。减压阀上配有压力调节按钮，可根据用户的阀后压力需要值，对减压阀进行各种高精度的压力调节控制。
美国欧可OKE进口水用可调式减压阀主要应用在城市建筑、高层建筑的冷热供水系统中，可取代常规分区水管，节省设备。也可在通常的冷热水管网中，起减压稳压作用。
主要特征：
◆结构新颖合理、合理运用液压原理控制论
◆工作平稳可靠、大流量通行
◆阀瓣快开慢闭、无水锤冲击(关闭时间可调)
◆减稳压精度高、调节范围大
◆密封性能好、使用寿命时间长
◆安装、调压、维修方便

二、进口水用可调式减压阀 技术参数及性能
型号 OKE
公称压力(Mpa) 1.0 1.6 2.5
壳体试验压力(Mpa)* 1.5 2.4 3.75
密封试验压力(Mpa) 1.0 1.6 2.5
最高进口压力(Mpa) 1.0 1.6 2.5
出口压力范围(Mpa) 0.2-0.8 0.2-1.0 0.4-1.6
压力特性偏差(Mpa)△P2P GB12244-1989，API690，ANSI
流量特性偏差(Mpa)P2G GB12244-1989， API690，ANSI
渗漏量 0
工作温度 0℃-80℃

三、进口水用可调式减压阀 额定流量系数
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500

四、进口水用可调式减压阀 零件材料
零件名称 零件材料
阀体 阀盖 底盖 WCB
阀座 2Cr13
阀瓣 2Cr13
阀杆 2Cr13
缸套 2Cr13/25(镀硬铬)
活塞 2Cr13
O型圈 丁腈橡胶
密封圈 丁腈橡胶
膜片 夹织物丁腈橡胶
调节弹簧 60Si2Mn

五、进口水用可调式减压阀 部分业绩
三亚文华东方酒店、香格里拉台南远东国际大饭店、波士顿文华东方酒店、布拉格凯宾斯基、迪拜塔、台北101大厦、上海环球金融中心、香港环球贸易广场蒙特里凯悦度假村、曼谷香格里拉大酒店、波尔托罗曰凯宾斯基酒店、巴黎玛德莱娜凯悦酒店、布达佩斯卡尔维努斯凯宾斯基酒店

六、进口水用可调式减压阀 安装注意事项
1.为了操作和维护方便，该阀一般直立安装在水平管道上。
2.减压阀安装必须严格按照阀体上的箭头方向保持和流体流动方 减压阀
向一致。如果水质不清洁含有一些杂质，必须在减压阀的上游进水口安装过滤器
3.为了防止阀后压力超压，应在离阀出口不少于4M处安装一个减压阀。
4.减压阀在管道中起到一定的止回作用，为了防止水锤的危害，也可安装小的膨胀水箱，防止损坏管道和阀门，过滤器必须安装在减压阀的进水管前，而膨胀水箱必须安装在减压阀出水管后！

Adjustable pressure reducing valve for imported water
1. Adjustable pressure reducing valve for imported water Product Overview
Brand: US Ouke OKE
Water adjustable pressure reducing valve is also called water pressure regulating valve. It is mainly composed of adjusting spring, diaphragm, piston, valve seat and valve disc. It uses diaphragm to directly sense downstream pressure drive. The valve flap controls the valve opening to complete the decompression and pressure regulation function. The pressure reducing valve is equipped with a pressure adjustment button, which can perform various high-precision pressure adjustment control on the pressure reducing valve according to the user's post-valve pressure demand value.
The US Ou Ke OKE imported water adjustable pressure reducing valve is mainly used in the urban and high-rise building's hot and cold water supply system, which can replace the conventional partition water pipe and save equipment. It can also be used in the normal hot and cold water pipe network to reduce the pressure.
Main features:
◆The structure is novel and reasonable, and the hydraulic principle control theory is rationally applied.
◆Stable and reliable work, large traffic
◆Valve opening and closing slowly, no hammer impact (closed time adjustable)
◆High voltage regulation and high adjustment range
◆Good sealing performance and long service life
◆ Easy installation, pressure regulation and maintenance

2. Adjustable pressure reducing valve for imported water Technical parameters and performance
Model OKE
Nominal pressure (Mpa) 1.0 1.6 2.5
Shell test pressure (Mpa)* 1.5 2.4 3.75
Sealing test pressure (Mpa) 1.0 1.6 2.5
Maximum import pressure (Mpa) 1.0 1.6 2.5
Export pressure range (Mpa) 0.2-0.8 0.2-1.0 0.4-1.6
Pressure characteristic deviation (Mpa) △ P2P GB12244-1989, API690, ANSI
Flow characteristic deviation (Mpa) P2G GB12244-1989, API690, ANSI
Leakage 0
Working temperature 0°C-80°C

3. Adjustable pressure reducing valve for imported water
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500

4. Adjustable pressure reducing valve for imported water
Part Name Part Material
Body bonnet bottom cover WCB
Seat 2Cr13
Disc 2Cr13
Stem 2Cr13
Cylinder liner 2Cr13/25 (hard chrome plating)
Piston 2Cr13
O-ring nitrile rubber
Sealing ring
Diaphragm clip fabric nitrile rubber
Adjustment spring 60Si2Mn

V. Adjustable pressure reducing valve for imported water
Mandarin Oriental, Sanya, Shangri-La's Far Eastern Plaza Hotel, Boston, Mandarin Oriental, Boston Kempinski, Burj Khalifa, Taipei 101, Shanghai World Financial Center, Hyatt Regency Hong Kong Global Commerce Plaza, Shangri-La, Bangkok Hotel, Kempinski Hotel Portoro?, Hyatt Regency Paris Madeleine, Kempinski Hotel Calvinus Budapest

6. Adjustable pressure reducing valve for imported water Installation precautions
1. For ease of operation and maintenance, the valve is generally mounted upright on a horizontal pipe.
2. The pressure reducing valve must be installed in strict accordance with the direction of the arrow on the valve body and the fluid flow side pressure reducing valve
Consistent. If the water quality is not clean and contains some impurities, the filter must be installed at the upstream inlet of the pressure reducing valve.
3. In order to prevent post-valve pressure overpressure, a pressure reducing valve should be installed at not less than 4M from the valve outlet.
4. The pressure reducing valve plays a certain role in the pipeline. In order to prevent the damage of the water hammer, a small expansion tank can also be installed to prevent damage to the pipeline and the valve. The filter must be installed in front of the inlet pipe of the pressure reducing valve. The expansion tank must be installed after the pressure relief valve outlet!
