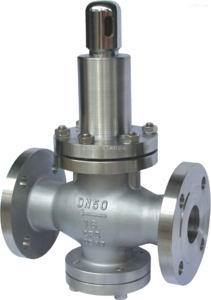

进口不锈钢水用减压阀
一、进口不锈钢水用减压阀概述
品牌：美国欧可OKE
进口不锈钢水用减压阀stainless steel water water pressure reducing valve，是指阀体采用不锈钢304或者316材质，具有耐酸碱，耐腐蚀，耐生锈的功能，强度好，韧性强，能有效高精度的减压稳压的阀门。
进口不锈钢水用减压阀主要用于各种建筑给水系统、消防系统、中央空调系统、采暖系统等。它用于支管减压，可使供水压力分配更加均衡，避免部分供水超压，优化高层建筑给水分区。进口不锈钢水用减压阀可代替分区调频变速水泵，在消防给水系统上可代替分区水泵，用于家用给水系统，可保护所有的水龙头和其它水器具。
二、进口不锈钢水用减压阀产品特征
1、不锈钢材质，耐磨，耐腐蚀，耐生锈
2、螺纹连接，连接方便，省材料，性价比高
3、极佳的水力特性，压力损失小
4、加压比例大，减压比可达成10：1以上
三、进口不锈钢水用减压阀工作原理
出口压力作用在隔膜底面和阀瓣底面，当它超过弹簧设定值时，压缩弹簧，使阀瓣关闭。只要下游无水流动，出口压力将基本保持在设定值（其变化量仅为入口压力变化量的8%）；当下游用水时，出口压力下降，弹簧推开隔膜，打开减压阀。水流连续流通一阵后，减压阀的开启产生自阻尼效应，使启闭动作趋于平稳。
采用直接作用隔膜式结构，内部结构非常简单，无卡阻，性能可靠，经久耐用。耐脏防水垢,不需过滤器,不需旁通管,配管极其简单,能节省大量空间和配管成本。 出口压力精密可调，在一般场合下，可以认为出口压力不受进口压力的影响（出口压力的变化量是△P1的8%）。 极佳的水力特性，压力损失小，减压比可达成10：1以上。 可满足多种减压要求，特别适用于支管减压系统。
四、进口不锈钢水用减压阀主要技术参数
类型 型号 公称压力
PN（MPa） 公称通径
DN（MPa） 连接形式 阀体材料 出口压力（MPa） 工作℃
减压阀 OKE 1.6-2.5
1.6-16.0 15~50
15-300 内螺纹
法兰 不锈钢 0.05~0.6（可调） 80
不锈钢
五、进口不锈钢水用减压阀主要尺寸
公称通径DN（MPa） 尺寸（MM） 重量（Kg）
MM in A B C φG
15 1/2 31 60 76.5 59 1.2
20 3/4 31 75 76.5 73 1.2
25 1 36 88 85 81 1.4
32 11/4 42 93 98 81 1.5
40 11/2 45 98 102 85 2
50 2 54 130 117 98 2.65
六、进口不锈钢减压阀 部分业绩
厦门水务局、三亚文华东方酒店、香格里拉台南远东国际大饭店、波士顿文华东方酒店、布拉格凯宾斯基、迪拜塔、上海汉华水处理公称有限公司、台北101大厦、上海环球金融中心、香港环球贸易广场蒙特里凯悦度假村、曼谷香格里拉大酒店、波尔托罗曰凯宾斯基酒店、巴黎玛德莱娜凯悦酒店、大连水务集团、布达佩斯卡尔维努斯凯宾斯基酒店、开能集团、湖南永清投资集团、廊坊多元水处理集团
Imported stainless steel water pressure reducing valve
I. Overview of imported stainless steel water pressure reducing valve
Brand: US Ouke OKE
Imported stainless steel water pressure reducing valve means that the valve body is made of stainless steel 304 or 316. It has the functions of acid and alkali resistance, corrosion resistance and rust resistance. It has good strength, strong toughness and high precision. The decompression regulator valve.
Imported stainless steel water pressure reducing valves are mainly used in various building water supply systems, fire protection systems, central air conditioning systems, heating systems, etc. It is used for branch pipe decompression, which can make the water supply pressure distribution more balanced, avoid partial water supply overpressure, and optimize the high-rise building water supply zone. The imported stainless steel water pressure reducing valve can replace the zone frequency variable frequency water pump. It can replace the district water pump in the fire water supply system and can be used in the household water supply system to protect all the faucets and other water appliances.
Second, the imported stainless steel water pressure reducing valve product features
1, stainless steel, wear-resistant, corrosion-resistant, rust-resistant
2, threaded connection, convenient connection, material saving, cost-effective
3, excellent hydraulic characteristics, low pressure loss
4, the pressure ratio is large, the pressure reduction ratio can reach 10:1 or more
Third, the working principle of imported stainless steel water pressure reducing valve
The outlet pressure acts on the bottom surface of the diaphragm and the underside of the valve flap. When it exceeds the spring setting, the spring is compressed to close the flap. As long as there is no downstream flow, the outlet pressure will remain at the set value (the amount of change is only 8% of the inlet pressure change); when the downstream water is used, the outlet pressure drops, the spring pushes open the diaphragm, and opens the pressure reducing valve. After the water flow is continuously circulated for a while, the opening of the pressure reducing valve produces a self-damping effect, which makes the opening and closing action tend to be stable.
With a direct acting diaphragm structure, the internal structure is very simple, no jamming, reliable performance and durability. It is resistant to dirt and scale, does not require a filter, does not require a bypass pipe, and the piping is extremely simple, saving a lot of space and piping costs. The outlet pressure is precisely adjustable. Under normal circumstances, the outlet pressure can be considered to be unaffected by the inlet pressure (the change in outlet pressure is 8% of ΔP1). Excellent hydraulic characteristics, low pressure loss, and a pressure reduction ratio of 10:1 or more. It can meet a variety of decompression requirements, especially for branch pipe decompression systems.
Fourth, the main technical parameters of imported stainless steel water pressure reducing valve
Type Model Nominal pressure
PN (MPa) nominal diameter
DN (MPa) Connection form Body material Outlet pressure (MPa) Working °C
Pressure reducing valve OKE 1.6-2.5
1.6-16.0 15~50
15-300 internal thread
Flange stainless steel 0.05~0.6 (adjustable) 80
stainless steel
V. Main dimensions of imported stainless steel water pressure reducing valve
Nominal diameter DN (MPa) Dimensions (MM) Weight (Kg)
MM in A B C φG
15 1/2 31 60 76.5 59 1.2
20 3/4 31 75 76.5 73 1.2
25 1 36 88 85 81 1.4
32 11/4 42 93 98 81 1.5
40 11/2 45 98 102 85 2
50 2 54 130 117 98 2.65
Sixth, imported stainless steel pressure reducing valve
Xiamen Water Affairs Bureau, Sanya Mandarin Oriental Hotel, Shangri-La's Far Eastern Plaza Hotel, Boston Mandarin Oriental Hotel, Prague Kempinski, Burj Khalifa, Shanghai Hanhua Water Treatment Co., Ltd., Taipei 101 Building, Shanghai World Financial Center, Hyatt Regency Hong Kong at Universal Plaza, Hong Kong, Shangri-La Hotel, Bangkok, Kempinski Hotel Portoro?, Hyatt Regency Paris Madeleine, Dalian Water Group, Kempinski Hotel Karvinus Budapest Kai Neng Group, Hunan Yongqing Investment Group, Langfang Multi-Water Treatment Group
|
