进口蒸汽减压阀

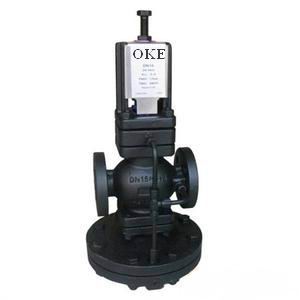

一、进口蒸汽减压阀产品概述
品牌：美国欧可OKE
进口蒸汽减压阀，steam reducing valve，也叫蒸汽调压阀，是指用于蒸汽管道系统，通过导阀感应阀后压力的变化，调节主阀的阀芯开度，将蒸汽管道的进口压力减至某一需要的出口压力，并稳定在压力值的阀门。此阀依靠蒸汽介质本身的能量,使出口压力自动膜片采用了新型材料，并大大加工了工作面积，因此阀门上游压力或下游负荷细微的变化都能及时准确的反馈到主阀膜片，来调节主阀的开度，确保下游压力的稳定。

二、进口蒸汽减压阀主要技术参数和性能指标The main technical parameters and performance indicators
公称压力Nominal pressure(Mpa) 2.5
壳体试验压力Shell test pressure(Mpa)* 3.75
密封试验压力Sealing test pressure (Mpa) 2.5
最高进口压力Max inlet pressure(Mpa) 2.5
出口压力范围Outlet pressure range(Mpa) 0.02-1.6
压力特性偏差Pressure characteristic deviation(Mpa)△P2P GB12244-1989
流量特性偏差Flow characteristic deviation (Mpa)P2G GB12244-1989
*：壳体试验不包括膜片、阀盖。

三、进口蒸汽减压阀主要零件材料Main parts and materials
零件名称Part name Materials
阀体 阀盖 Body\Cover WCB
阀座 Valve 2Cr13
阀瓣Stem 2Cr13
阀杆Stem 2Cr13
膜片Diaphragm 1Cr18Ni9Ti
调节弹簧spring 60Si2Mn

四、进口蒸汽减压阀流量系数Flow coefficient (Cv)
DN 15 20 25 32 40 50
Cv 2.9 5.3 8.6 11.6 16.5 29.1

五、进口蒸汽减压阀连接尺寸Connection Size

DN L H1 H D
15 147 235 145 207
20 154 235 145 207
25 160 235 145 207
32 180 250 160 220
40 16 250 160 220
50 230 270 180 220

六、美国欧可OKE进口蒸汽减压阀业绩
北京碧水源净水科技有限公司,三诺生物,国瓷材料,冠昊生物中国石油化工集团公司中国港湾建设（集团）总公司中国中煤能源集团公司中国大唐集团公司邯郸钢铁集团有限责任公司上海纺织控股（集团）公司，浙江富兴电力燃料有限公司,广州明珠电力（集团）股份有限公司，成都热电厂内蒙古蒙电华能热电股份有限公司，山东菏泽锅炉（集团）厂有限公司，吉祥化工设备公司，四川省宜宾五粮液集团有限公司，杭州娃哈哈集团有限公司，维维集团统一企业中国公司，内蒙古蒙牛乳业集团股份有限公司

七、进口蒸汽减压阀安装说明书
1、蒸汽减压阀安装前必须对管路系统进行冲洗清理。以防焊渣，氧化皮等赃物流入阀内，影响阀门正常工作。
2、蒸汽减压阀应安装在便于操作和维修的地方，并且必须直立安装在水平管道上，应注意使管路中介质的流向与阀体上箭头所示方向一致，切勿反装。
3、蒸汽减压阀在安装使用时，应把旁通管道的截止阀打开，排除管路中的冷凝水和汽水的混合物，以防减压阀开启时产生水圾现象损坏减压阀，当无异常现象后，按顺时针方向缓慢旋转调节螺钉，将出口压力调至所需的压力(以阀后表压为准)，调整后，将锁紧螺母背紧，拧上防护罩。
4、蒸汽减压阀前应安装过滤器，以防介质中的杂物进入减压阀，影响其性能。
5、安装的减压阀前后应有一段直管，阀前的直管长度约为600毫米，阀后的直管长度约为1000毫米。
6、蒸汽减压阀要求进出口压差必须≥0.2Mpa。
7、蒸汽减压阀的管网必须装安全阀，以防减压阀失效压力升高造成系统或者设备的破坏。

Imported steam pressure reducing valve
I. Overview of imported steam pressure reducing valve products
Brand: US Ouke OKE
Imported steam pressure reducing valve, also known as steam pressure regulating valve, refers to the steam pipe system, the pressure change after the valve is sensed through the pilot valve, adjust the valve opening of the main valve, the inlet pressure of the steam pipe Reduce to a required outlet pressure and stabilize the valve at the pressure value. The valve relies on the energy of the steam medium itself, so that the outlet pressure automatic diaphragm adopts a new material and greatly processes the working area, so the slight change of the upstream pressure or the downstream load of the valve can be timely and accurately fed back to the main valve diaphragm. Adjust the opening of the main valve to ensure the stability of the downstream pressure.

Second, the main technical parameters and performance indicators of the imported steam pressure reducing valve
Nominal pressure (Mpa) 2.5
Shell test pressure (Mpa)* 3.75
Sealing test pressure (Seal test pressure (Mpa) 2.5
Maximum inlet pressure Max inlet pressure (Mpa) 2.5
Outlet pressure range (Mpa) 0.02-1.6
Pressure characteristic deviation (Mpa) △ P2P GB12244-1989
Flow characteristic deviation (Mpa)P2G GB12244-1989
*: The housing test does not include diaphragms or bonnets.

Third, the main parts and materials of the imported steam pressure reducing valve
Part name Part name Materials
Body bonnet Body\Cover WCB
Seat Valve 2Cr13
Disc Stem 2Cr13
Stem Stem 2Cr13
Diaphragm Diaphragm 1Cr18Ni9Ti
Adjustment spring spring 60Si2Mn

Fourth, the inlet steam pressure reducing valve flow coefficient Flow coefficient (Cv)
DN 15 20 25 32 40 50
Cv 2.9 5.3 8.6 11.6 16.5 29.1

Five, imported steam pressure reducing valve connection size Connection Size

DN L H1 H D
15 147 235 145 207
20 154 235 145 207
25 160 235 145 207
32 180 250 160 220
40 16 250 160 220
50 230 270 180 220

Sixth, the United States Europe can OKE import steam pressure reducing valve performance
Beijing Bishuiyuan Water Purification Technology Co., Ltd., Sannuo Bio, China Ceramics Materials, Guanxi Bio-China Petrochemical Corporation China Harbour Construction (Group) Corporation China China Coal Energy Group Corporation China Datang Corporation Corporation Handan Iron and Steel Group Co., Ltd. Shanghai Textile Holding (Group) Company, Zhejiang Fuxing Electric Fuel Co., Ltd., Guangzhou Mingzhu Electric Power (Group) Co., Ltd., Chengdu Thermal Power Plant Inner Mongolia Mengdian Huaneng Thermal Power Co., Ltd., Shandong Heze Boiler (Group) Factory Co., Ltd., Jixiang Chemical Equipment Co., Ltd. , Sichuan Yibin Wuliangye Group Co., Ltd., Hangzhou Wahaha Group Co., Ltd., Weiwei Group Uniform Enterprise China, Inner Mongolia Mengniu Dairy Group Co., Ltd.

Seven, imported steam pressure reducing valve installation instructions
1. The steam pressure relief valve must be flushed and cleaned before installation. In order to prevent the welding slag, oxide scale and other sputum from flowing into the valve, affecting the normal operation of the valve.
2. The steam pressure reducing valve should be installed in a place convenient for operation and maintenance, and must be installed upright on the horizontal pipe. It should be noted that the flow direction of the medium in the pipe is consistent with the direction indicated by the arrow on the valve body, and must not be reversed.
3. When the steam pressure reducing valve is installed and used, the shut-off valve of the bypass pipe should be opened to eliminate the mixture of condensed water and soda water in the pipeline to prevent the garbage valve from damaging the pressure reducing valve when the pressure reducing valve is opened. After no abnormality, slowly rotate the adjusting screw clockwise to adjust the outlet pressure to the required pressure (according to the valve back pressure). After adjustment, tighten the lock nut and tighten the protective cover.
4. A filter should be installed before the steam pressure reducing valve to prevent debris in the medium from entering the pressure reducing valve and affecting its performance.
5. There should be a straight pipe before and after the installed pressure reducing valve. The length of the straight pipe in front of the valve is about 600 mm, and the length of the straight pipe behind the valve is about 1000 mm.
6, steam pressure reducing valve requires inlet and outlet pressure difference must be ≥ 0.2Mpa.
7. The pipe network of the steam pressure reducing valve must be equipped with a safety valve to prevent damage to the system or equipment caused by the pressure failure of the pressure reducing valve.
