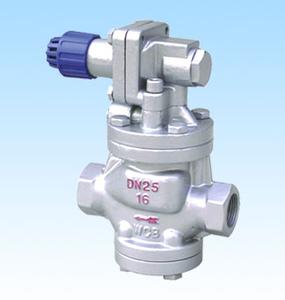

进口高灵敏度蒸汽减压阀（高精度减压阀）
一、进口高灵敏度蒸汽减压阀（高精度减压阀） 产品概述
品牌：美国欧可OKE
进口高灵敏度蒸汽减压阀，High sensitivity steam valve reducing valve，也叫进口高精度减压阀，主要用于蒸汽管路，适用于进口压力变化大，流量变化大的蒸汽管路。通过调节调节弹簧压力设定出口压力、利用膜片传感出口压力变化,通过导阀启闭驱动活塞调节主阀节流部位过流面积的大小，实现减压稳压功能，进口高灵敏度蒸汽减压阀（高精度减压阀）在普通减压阀加大了活塞面积，改变了节流结构，改变了密封形式，改进了导阀结构和调节弹簧形式，能更加灵敏有效的感应阀后蒸汽压力，有效的高精度的对阀后压力进行减压稳压。
进口高灵敏度蒸汽减压阀（高精度减压阀）特征：
1、提高了对出口压力变化的传感效能，提高了灵敏度，大大降低了因上游压力变化，流量变化等因素引起的压力偏差。
2、改善了流线分布，降低了噪声。
3、改进了密封面结构，延长了密封面寿命。

二、进口高灵敏度蒸汽减压阀（高精度减压阀） 技术参数
进口高灵敏度蒸汽减压阀（高精度减压阀）公称压力(Mpa) 1.0 1.6
壳体试验压力(Mpa)* 1.5 2.4
最高进口压力(Mpa) 1.0 1.6
密封试验压力(Mpa) 1.0 1.6
出口压力范围(Mpa) 0.04-0.6 0.04-1.0
口径 DN15-80
温度 0-450℃
最小压差（MPa） 0.15
控制精度误差 ≤3%
*：壳体试验不包括膜片、顶盖
三、进口高灵敏度蒸汽减压阀（高精度减压阀） 零部件材料
零件名称 零件选用材料
阀体、阀盖、底盖 WCB 不锈钢304、316
阀座、阀瓣 2Cr13
活塞环 对位聚苯
膜片 PH15-7Mo
缸套、活塞 铝铁青铜
导阀座、导阀瓣 2Cr13
主阀弹簧 50CrVA
调节弹簧 60Si2Mn
导调主弹簧 50CrVA

四、美国欧可OKE进口高灵敏度蒸汽减压阀业绩
北京碧水源净水科技有限公司,三诺生物,国瓷材料,冠昊生物中国石油化工集团公司中国港湾建设（集团）总公司中国中煤能源集团公司中国大唐集团公司邯郸钢铁集团有限责任公司上海纺织控股（集团）公司，浙江富兴电力燃料有限公司,广州明珠电力（集团）股份有限公司，成都热电厂内蒙古蒙电华能热电股份有限公司，山东菏泽锅炉（集团）厂有限公司，吉祥化工设备公司，四川省宜宾五粮液集团有限公司，杭州娃哈哈集团有限公司，维维集团统一企业中国公司，内蒙古蒙牛乳业集团股份有限公司

五、进口高灵敏度蒸汽减压阀安装说明书
1、蒸汽减压稳压阀安装前必须对管路系统进行冲洗清理。以防焊渣，氧化皮等赃物流入阀内，影响阀门正常工作。
2、蒸汽减压稳压阀应安装在便于操作和维修的地方，并且必须直立安装在水平管道上，应注意使管路中介质的流向与阀体上箭头所示方向一致，切勿反装。
3、蒸汽减压稳压阀在安装使用时，应把旁通管道的截止阀打开，排除管路中的冷凝水和汽水的混合物，以防减压阀开启时产生水圾现象损坏减压阀，当无异常现象后，按顺时针方向缓慢旋转调节螺钉，将出口压力调至所需的压力(以阀后表压为准)，调整后，将锁紧螺母背紧，拧上防护罩。
4、蒸汽减压稳压阀前应安装过滤器，以防介质中的杂物进入减压阀，影响其性能。
5、安装的减压阀前后应有一段直管，阀前的直管长度约为600毫米，阀后的直管长度约为1000毫米。
6、蒸汽减压稳压阀要求进出口压差必须≥0.2Mpa。
7、蒸汽减压稳压阀的管网必须装安全阀，以防减压阀失效压力升高造成系统或者设备的破坏。

Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve)
1. Imported high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve) Product Overview
Brand: US Ouke OKE
High sensitivity steam valve reducing valve, also called high-precision steam valve reducing valve, is mainly used for steam pipelines. It is suitable for steam pipelines with large inlet pressure changes and large flow changes. By adjusting the adjustment spring pressure to set the outlet pressure, using the diaphragm to sense the outlet pressure change, the pilot valve is opened and closed by the pilot valve to adjust the overflow area of ??the throttle portion of the main valve to achieve the decompression and pressure reduction function, and the imported high sensitivity steam is reduced. The pressure valve (high-precision pressure reducing valve) increases the piston area in the ordinary pressure reducing valve, changes the throttling structure, changes the sealing form, improves the pilot valve structure and adjusts the spring form, and can be more sensitive and effective after the induction valve steam Pressure, effective high-precision pressure reduction of the post-valve pressure.
Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve) features:
1. Improve the sensing efficiency of the change of outlet pressure, improve the sensitivity, and greatly reduce the pressure deviation caused by the upstream pressure change, flow change and other factors.
2. Improved streamline distribution and reduced noise.
3. The sealing surface structure is improved and the life of the sealing surface is prolonged.

Second, the import of high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve) technical parameters
Imported high sensitivity steam pressure reducing valve (high precision pressure reducing valve) nominal pressure (Mpa) 1.0 1.6
Shell test pressure (Mpa)* 1.5 2.4
Maximum import pressure (Mpa) 1.0 1.6
Seal test pressure (Mpa) 1.0 1.6
Outlet pressure range (Mpa) 0.04-0.6 0.04-1.0
Caliber DN15-80
Temperature 0-450 ° C
Minimum differential pressure (MPa) 0.15
Control accuracy error ≤3%
*: Shell test does not include diaphragm, top cover
Third, imported high-sensitivity steam pressure reducing valve (high-precision pressure reducing valve)
Part name Part selection material
Body, bonnet, bottom cover WCB stainless steel 304, 316
Seat, disc 2Cr13
Piston ring
Diaphragm PH15-7Mo
Cylinder liner, piston, aluminum iron bronze
Guide seat, pilot valve 2Cr13
Main valve spring 50CrVA
Adjustment spring 60Si2Mn
Guide main spring 50CrVA

Fourth, the United States Europe can OKE import high sensitivity steam pressure reducing valve performance
Beijing Bishuiyuan Water Purification Technology Co., Ltd., Sannuo Bio, China Ceramics Materials, Guanxi Bio-China Petrochemical Corporation China Harbour Construction (Group) Corporation China China Coal Energy Group Corporation China Datang Corporation Corporation Handan Iron and Steel Group Co., Ltd. Shanghai Textile Holding (Group) Company, Zhejiang Fuxing Electric Fuel Co., Ltd., Guangzhou Mingzhu Electric Power (Group) Co., Ltd., Chengdu Thermal Power Plant Inner Mongolia Mengdian Huaneng Thermal Power Co., Ltd., Shandong Heze Boiler (Group) Factory Co., Ltd., Jixiang Chemical Equipment Co., Ltd. , Sichuan Yibin Wuliangye Group Co., Ltd., Hangzhou Wahaha Group Co., Ltd., Weiwei Group Uniform Enterprise China, Inner Mongolia Mengniu Dairy Group Co., Ltd.

Five, import high sensitivity steam pressure reducing valve installation instructions
1. The steam pressure relief valve must be flushed and cleaned before installation. In order to prevent the welding slag, oxide scale and other sputum from flowing into the valve, affecting the normal operation of the valve.
2. The steam pressure reducing regulator should be installed in a place convenient for operation and maintenance, and must be installed upright on the horizontal pipe. It should be noted that the flow direction of the medium in the pipeline is consistent with the direction indicated by the arrow on the valve body. .
3. When the steam pressure reducing regulator valve is installed and used, the shut-off valve of the bypass pipe should be opened to eliminate the mixture of condensed water and soda water in the pipeline to prevent the garbage valve from being damaged when the pressure reducing valve is opened. When there is no abnormality, slowly rotate the adjusting screw clockwise to adjust the outlet pressure to the required pressure (based on the valve back pressure). After adjustment, tighten the lock nut and tighten the protective cover.
4. A filter should be installed before the steam pressure reducing regulator to prevent debris in the medium from entering the pressure reducing valve and affecting its performance.
5. There should be a straight pipe before and after the installed pressure reducing valve. The length of the straight pipe in front of the valve is about 600 mm, and the length of the straight pipe behind the valve is about 1000 mm.
6. The steam pressure reducing regulator requires the inlet and outlet pressure difference to be ≥0.2Mpa.
7. The pipe network of the steam pressure reducing regulator valve must be equipped with a safety valve to prevent damage to the system or equipment caused by the failure pressure of the pressure reducing valve.
