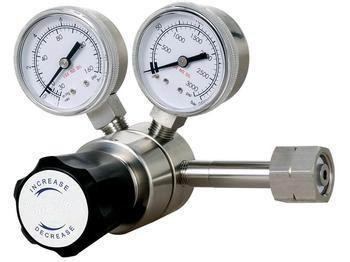

进口高压气体减压阀
一、进口高压气体减压阀 产品概述
品牌：美国欧可OKE
进口高压气体减压阀，High pressure gas reducing valve，也叫高压气体调压阀，是一种自动降低管路工作压力的专门装置，活塞式高压气体减压阀是采用控制阀体内的启闭件的开度来调节介质的流量，将介质的压力降低，同时借助阀后压力的作用调节启闭件的开度，使阀后压力保持在一定范围内，适用于各种高压的气体管道，压力最高可以达到16Mpa或者25Mpa。活塞式高压气体减压阀的特点是在进口压力不断变化的情况下，保持出口压力值在一定的范围内。在应用活塞式高压气体减压阀时，必须遵循其适用规范的要求，以确保经营正常进行。高压气体减压阀主要用于气体管路，如空气、氩气、氩气、氩气、液化气、天然气等气体介质。

二、进口高压气体减压阀 技术参数及性能
阀体形式 直通锻造阀体
公称通径 DN15～300mm
法兰标准 ANSI、JIS、DIN、GB、JB (特殊可按用户提供)
连接形式 法兰(FF RF RTJ)、焊接(BW SW)
公称压力(MPa) 11.0 15.0 26.0 42.0
壳体试验压力(Mpa) 16.5 22.5 39.0 63.0
密封试验压力(Mpa) 12.1 16.5 28.6 46.2
最高进口压力(Mpa) <11.0 <15.0 <26.0 <42.0
渗透量 X/F(橡胶/聚四氟乙稀)：O渗漏Y(硬密封)：按GB12245-1989

三、进口高压气体减压阀 零件材料
底盖 碳钢 不锈钢
阀体 碳钢 不锈钢
弹簧 65Mn
阀瓣 2Cr13/304 304
阀座/阀杆 2Cr13/304 304
导向套 2Cr13/304 304
活塞 304/铜合金
阀盖 碳钢 不锈钢
导阀 不锈钢/铜
接头 25 304

四、进口气体法兰减压阀业绩
英荷皇家壳牌石油公司，西门子股份公司，广东华南特种气体研究所有限公司，通用电气公司，北京桑翌实验仪器研究所杭州同益气体研究所,哈尔滨工业大学，江苏天瑞仪器股份有限公司，长沙开元仪器股份有限公司，比亚迪股份有限公司，美国德州仪器，瓦莱罗能源公司，惠州市方舟工业气体有限公司，江苏通广石化工业气体有限责任公司，杭州三泰工业气体设备有限公司

Imported high pressure gas pressure reducing valve
I. Imported high pressure gas pressure reducing valve Product overview
Brand: US Ouke OKE
The imported high pressure gas reducing valve, also called high pressure gas pressure regulating valve, is a special device for automatically reducing the working pressure of the pipeline. The piston type high pressure gas pressure reducing valve adopts the opening and closing member in the control valve body. The opening degree is used to adjust the flow rate of the medium, and the pressure of the medium is lowered. At the same time, the opening degree of the opening and closing member is adjusted by the action of the post-valve pressure, so that the post-valve pressure is maintained within a certain range, and is suitable for various high-pressure gas pipelines, pressure Up to 16Mpa or 25Mpa. The piston type high pressure gas pressure reducing valve is characterized by keeping the outlet pressure value within a certain range under the condition that the inlet pressure is constantly changing. When applying a piston high pressure gas pressure reducing valve, it must comply with the requirements of its applicable specifications to ensure normal operation. The high pressure gas pressure reducing valve is mainly used for gas pipelines such as air, argon, argon, argon, liquefied gas, natural gas and the like.

Second, imported high pressure gas pressure reducing valve Technical parameters and performance
Body form straight through forged valve body
Nominal diameter DN15～300mm
Flange standard ANSI, JIS, DIN, GB, JB (specially available by user)
Connection form Flange (FF RF RTJ), welding (BW SW)
Nominal pressure (MPa) 11.0 15.0 26.0 42.0
Shell test pressure (Mpa) 16.5 22.5 39.0 63.0
Seal test pressure (Mpa) 12.1 16.5 28.6 46.2
Maximum import pressure (Mpa) <11.0 <15.0 <26.0 <42.0
Permeation amount X/F (rubber/polytetrafluoroethylene): O leakage Y (hard seal): according to GB12245-1989

Third, imported high pressure gas pressure reducing valve parts and materials
Bottom cover carbon steel stainless steel
Body carbon steel
Spring 65Mn
Disc 2Cr13/304 304
Seat / Stem 2Cr13/304 304
Guide sleeve 2Cr13/304 304
Piston 304/copper alloy
Bonnet carbon steel stainless steel
Pilot valve stainless steel / copper
Connector 25 304

Fourth, the performance of imported gas flange pressure reducing valve
Royal Dutch Shell Oil Company, Siemens AG, Guangdong Huanan Special Gas Research Institute Co., Ltd., General Electric Company, Beijing Sangqi Experimental Instrument Research Institute Hangzhou Tongyi Gas Research Institute, Harbin Institute of Technology, Jiangsu Tianrui Instrument Co., Ltd. Changsha Kaiyuan Instrument Co., Ltd., BYD Co., Ltd., Texas Instruments, Valero Energy, Huizhou Fangzhou Industrial Gas Co., Ltd., Jiangsu Tongguang Petrochemical Industrial Gas Co., Ltd., Hangzhou Santai Industrial Gas Equipment Co., Ltd.
